行器WALKWARE

行器 · 磁吸扁平工具体系Walkware · a flat magnetic carry system

吸上就走Flat.
Magnetic.
Carry.

把最经典的随身工具压平,收进一片片 4 毫米的磁吸片里。全系用同一种磁铁,需要什么就吸上什么。行器只做壳体和组织方式,里面的工具按清单自己买。 We flatten classic pocket tools into 4 mm magnetic plates. Every part uses the same magnet, so you carry only what you need. We make the cases and the system; the tools inside you buy yourself, from a clear list.

模数Module
4 mm
磁铁Magnet
全系一种One spec
外形Outlines
ARC · 信用卡ARC · Card
系列Series
5

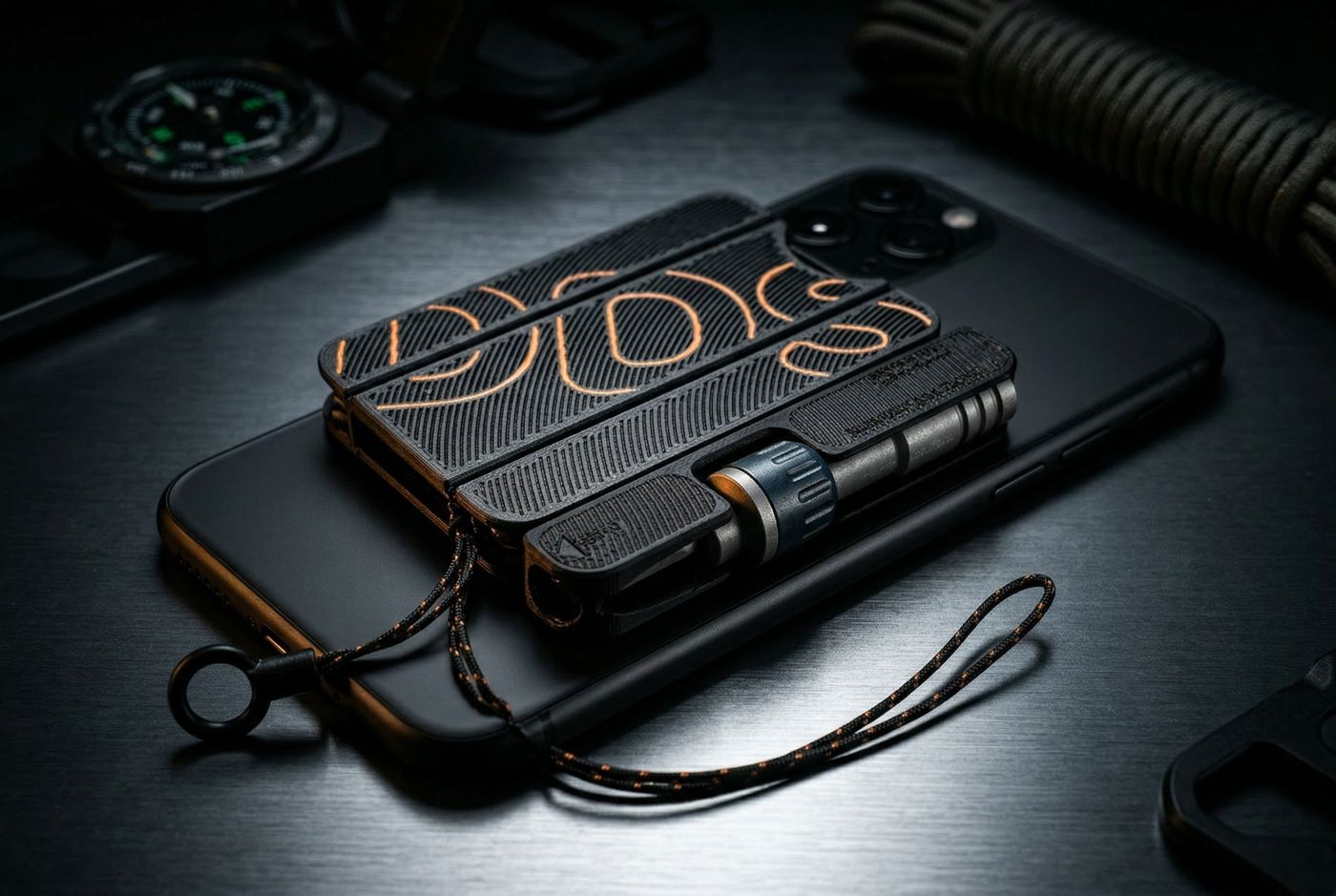

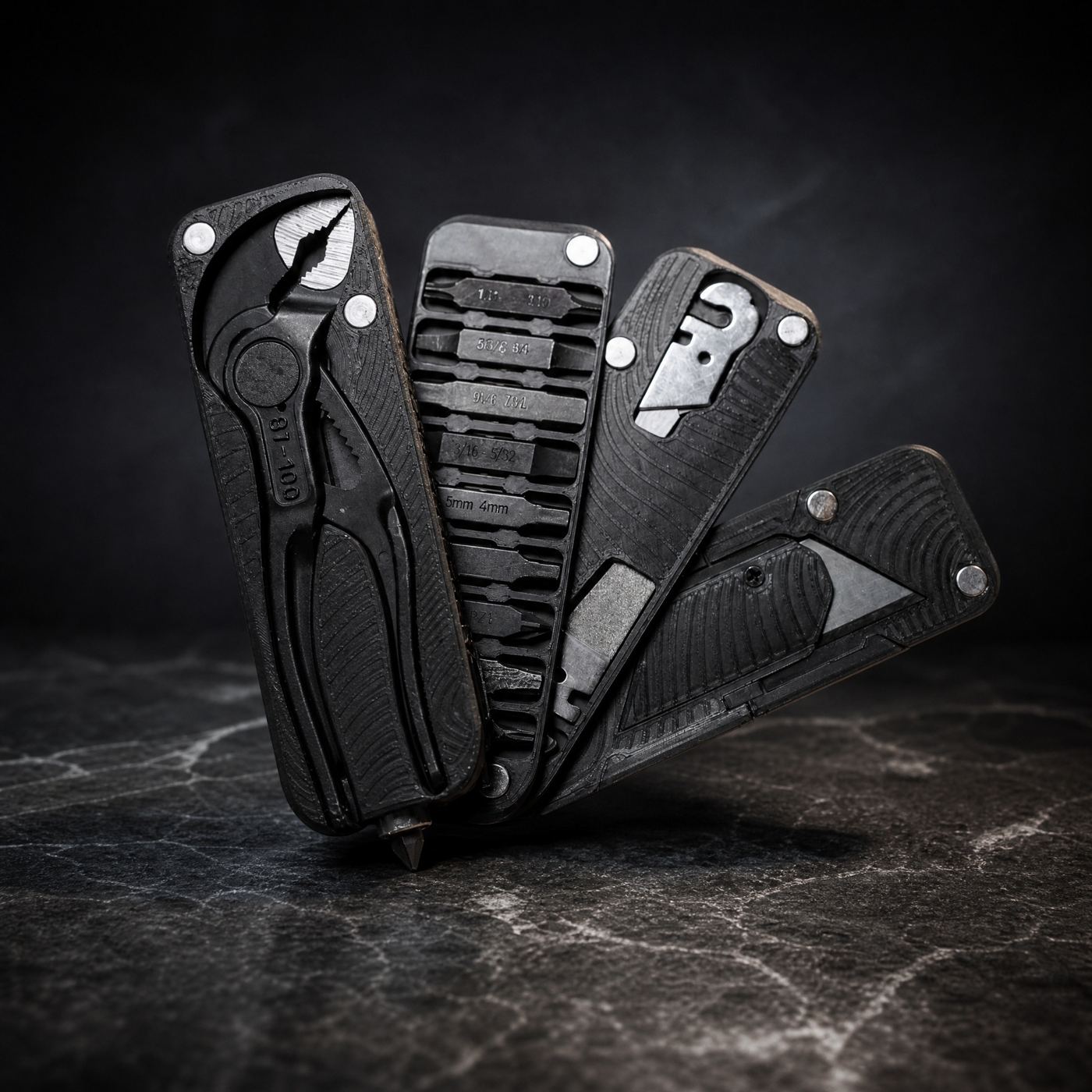

钳行者 · 2026 un Design Award 金奖Plier Voyager · 2026 un Design Award Gold ↗批行客 · 2026 un Design Award 金奖Bit Walker · 2026 un Design Award Gold ↗

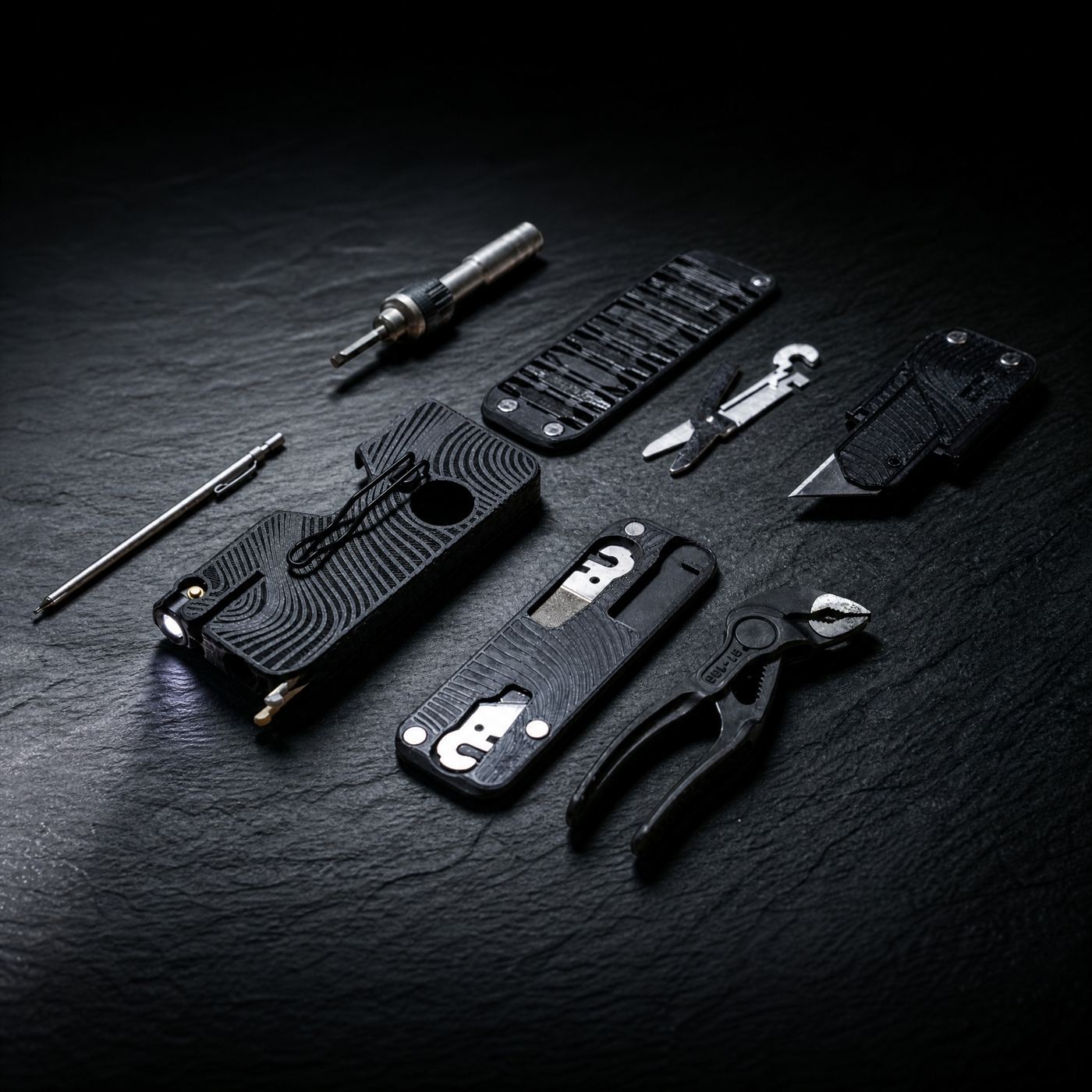

钳行者主壳与扩展片、批头和小工具

体系The system

一片 4 毫米,一种磁铁One 4 mm module. One magnet.

行器用做建筑的办法来做工具收纳:先定模数,再做构件,最后处理节点。磁铁厚 4 毫米,就是整个体系的模数;片子实打 3.6 毫米,磁铁两面各凸出 0.2 毫米,片与片之间只有磁铁接触。 Walkware is designed the way we design buildings: a module first, then components, then joints. The 4 mm magnet sets the module. Plates are printed at 3.6 mm, with the magnet standing 0.2 mm proud on each face, so plates touch only at the magnets.

3.6 4.0 +0.2 magnet proud PLATE · 3.6 mm
  • 4.0磁铁厚 4 毫米,是全系统的模数。三片叠起来就是 12 毫米的厚块。The 4 mm magnet sets the module. Three plates make a 12 mm block.
  • ×1从钳行者到卡片,所有产品都用同一规格的磁铁。From Plier Voyager to the cards, every product uses the same magnet.
  • 0.2片与片只靠磁铁接触,滑开顺手,也不磨打印表面的纹理。Plates touch only at the magnets, so they slide cleanly and never scuff the printed surface.

两种外形Two outlines

挂在身上,或者放进钱包On your belt, or in your wallet

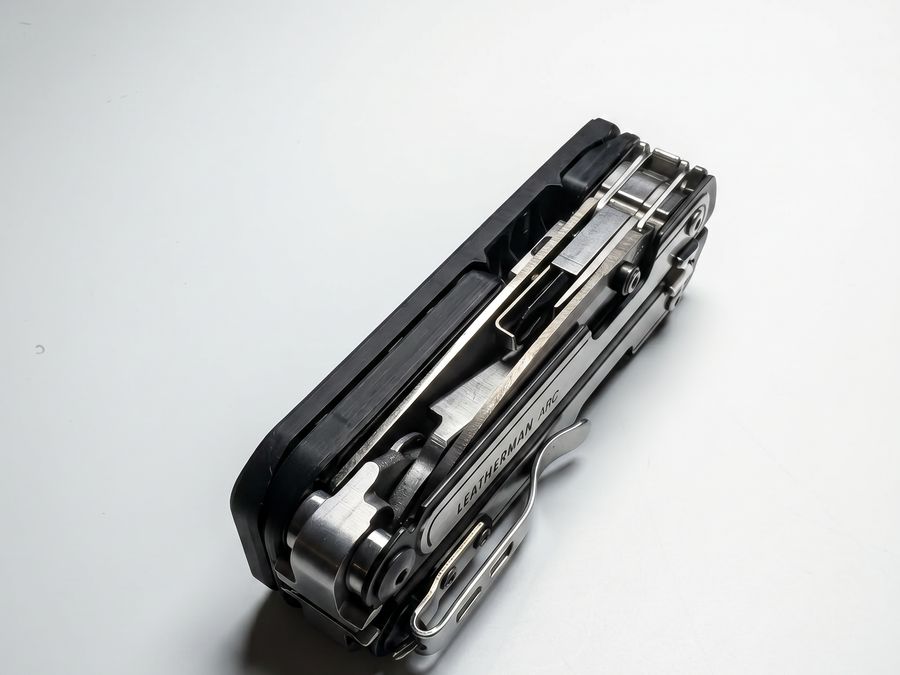

体系只有两种外形标准。钳行者一族用莱泽曼 ARC 的外轮廓,大约一只乒乓球拍握把大小,可以和 ARC 共用磁吸位置。卡片一族是标准信用卡尺寸,放进钱包、MagSafe 卡包,或者吸在手机背面。两族外形不同,但磁铁和模数相同。 The system has just two outlines. The Plier Voyager family follows the Leatherman ARC outline, about the size of a ping-pong paddle grip, and shares its magnet positions. The card family is credit-card size, for a wallet, a MagSafe holder or the back of your phone. Different shapes, same magnet, same module.

ARC OUTLINE 钳行者 · 批头板 · ARC 系列 CARD 85.6 × 54 批行客 · 行者匣
  • ARC钳行者一族:主壳包住钳子,扩展片磁吸叠放,挂在腰上或放进口袋。Plier Voyager family: a hub around the plier, plates stacked on magnets, carried on a belt or in a pocket.

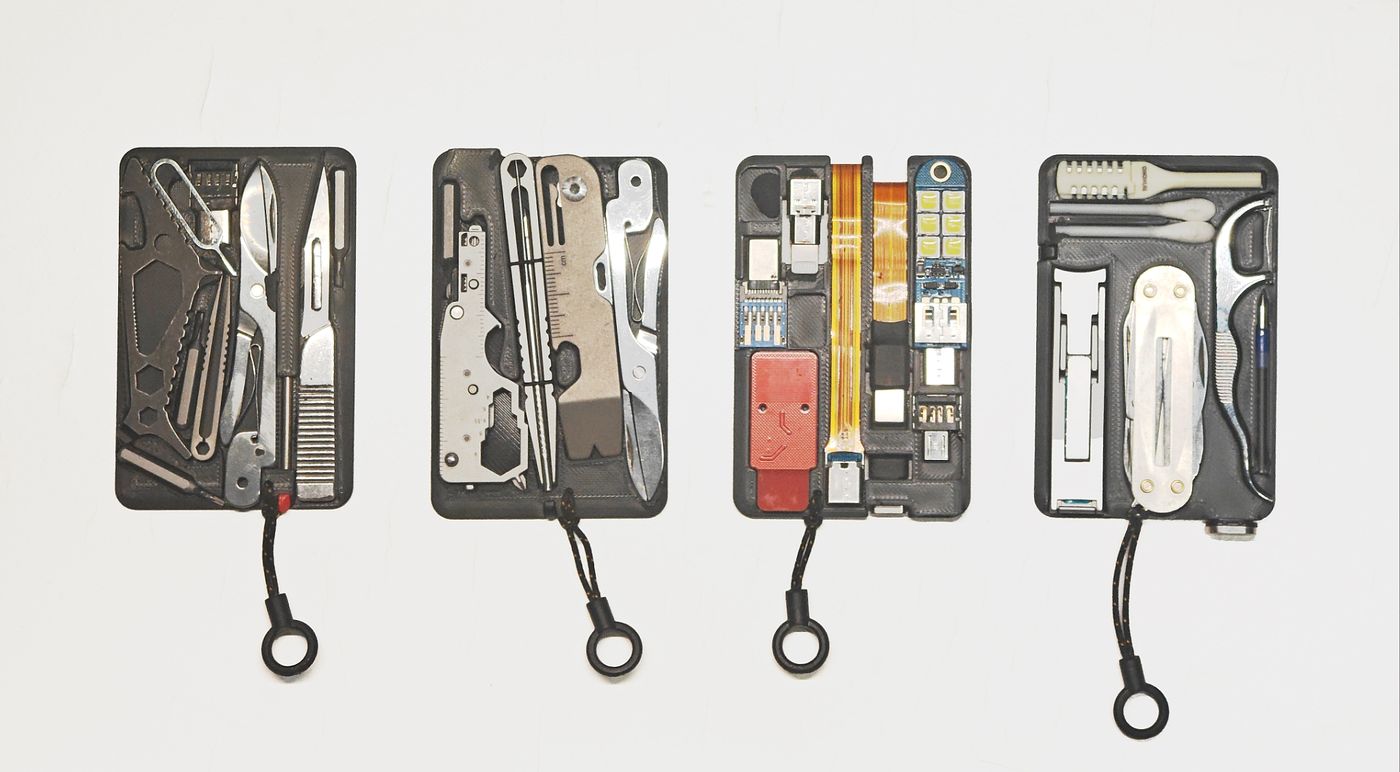

  • CARD卡片一族:两张卡背靠背互吸,进钱包、MagSafe 卡包,按机场安检的思路选配。Card family: two cards lock back to back and go into a wallet or a MagSafe holder, chosen with airport security in mind.

为什么做行器Why Walkware

一个建筑师,受不了工具的带法An architect who couldn't stand how tools are carried

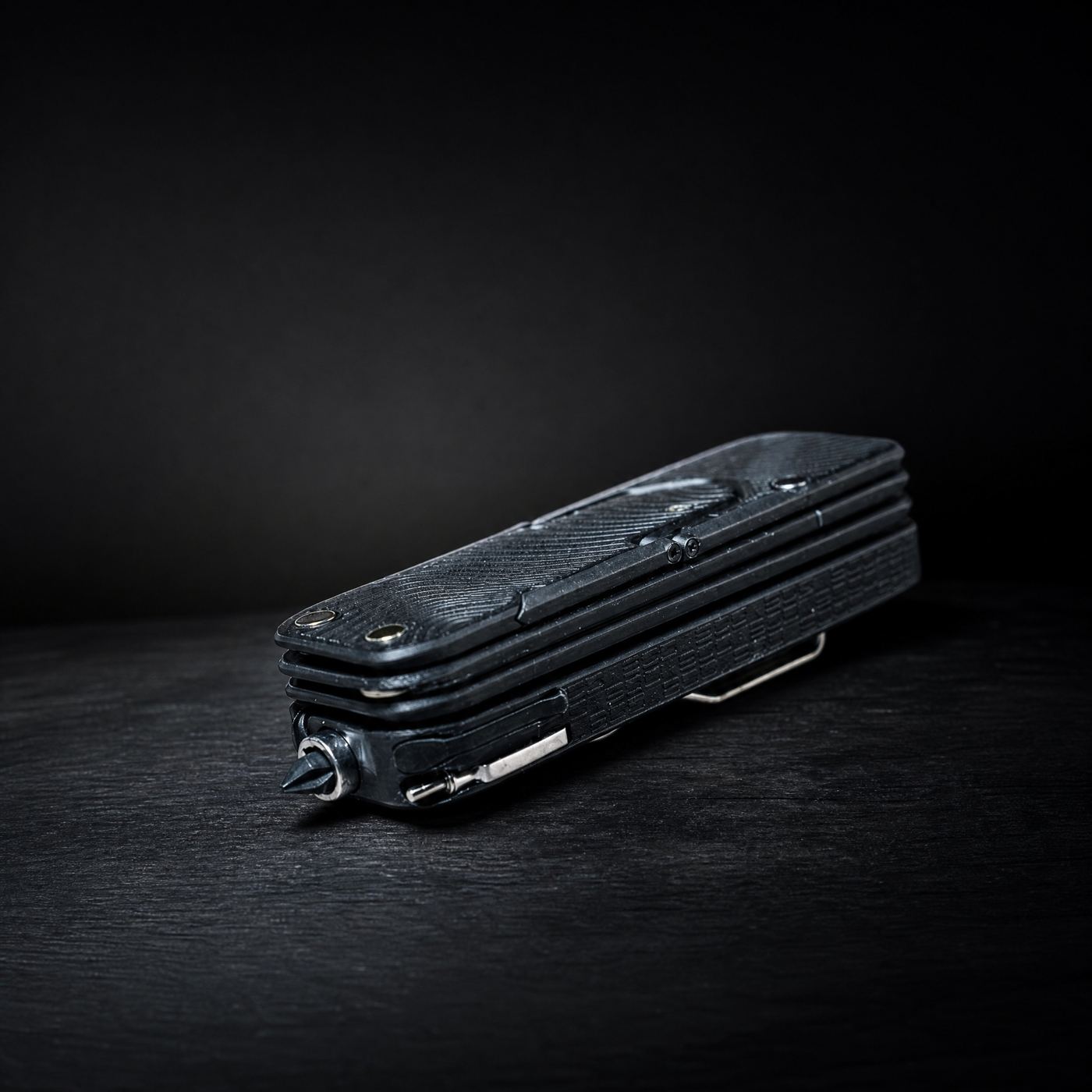

钳行者扩展片叠放

我是建筑师,工具用得很多,可它们的携带方式一直让我不舒服:收纳盒太大,配件到处散,钳子埋在包底找不到。后来干脆自己动手做,结果还能卖出去。

我用做建筑的办法来做它们:先定模数,再做构件,最后处理节点。每片工具只有 3.6 毫米厚,全系一种磁铁,把最经典、最扁平的工具集中在一起,需要什么就吸上什么。

名字里的“行”,来自小时候的随身听。它把音乐缩到口袋大小,那是我记忆里最好的工业设计之一。行器想把工具也压成一片片,带着走。

I'm an architect, and I use a lot of tools. How they're carried always bothered me: cases that are too big, accessories everywhere, a plier lost at the bottom of the bag. So I started making my own, and people wanted to buy them.

I make them the way I design buildings: set the module, then the components, then the joints. Each plate is only 3.6 mm thick, every part uses the same magnet, and the flattest classic tools come together in one system. Snap on what you need.

The name comes from the portable cassette players of my childhood, which shrank music down to pocket size. To me they were some of the best industrial design of their time. Walkware tries to do the same for tools.

行器设计者 · 建筑师,时境建筑 Atelier AlterFounder of Walkware · architect, Atelier Alter

材料Material

碳纤维 3D 打印Printed in carbon-fibre composites

每一件都在自己的工作室里打印、检查、发货。表面是等高线一样的水波纹,弱化打印层纹,防指纹,也防滑。Every part is printed, checked and shipped from our studio. A contour-ripple surface hides layer lines, resists fingerprints and adds grip.

STANDARDPLA-CF

深灰磨砂,手感细腻,打印最稳定。

Matte dark grey, fine to the touch, our most consistent print.

TOUGHPETG-CF

更有韧性,耐冲击,适合天天挂在身上。

Tougher and impact-resistant for daily carry.

PROPPA-CF

工程级尼龙,强度和耐热最好。

Engineering nylon with the best strength and heat resistance.

怎么买How to buy

壳体找我们,工具照单买Cases from us, tools from the list

行器卖的是壳体和组织方式。钳子、批头这些是别家的好产品,你自己买最划算,也最放心。What we sell is the case and the way it organises your kit. Pliers and bits are other makers' products, and buying them yourself is cheaper and simpler.

  1. 选配置Pick a setup

    在系列页里勾选你要的构件,右边自动生成购买清单。

    Tick the parts you want on a series page. The list builds itself.

  2. 下单壳体Order the case

    行器出品的部分在闲鱼下单,工作室打印后发货。

    Contact us for the Walkware parts. We print and ship from our studio.

  3. 买齐工具Buy the tools

    清单里每一项都附国内链接,可以一键复制整张清单。

    Every item links to Amazon. Copy the whole list in one click.
